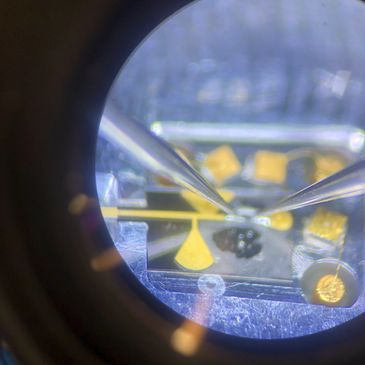

Where electromagnetics becomes intelligence — hard problems solved from first principles to working hardware

What you're seeing: an aircraft modeled as discrete scattering centers, imaged by its own rotation. Down-range resolution comes purely from bandwidth, ΔR = c / 2B — slide bandwidth up and the sinc point-spread function tightens along range. Cross-range resolution comes from the Doppler gradient across the target over the coherent processing interval, ΔCR = λ / 2Δθ — more rotation or a shorter wavelength sharpens azimuth independently. Reduce both and the scatterers smear into an unresolvable blob: this is the resolution budget behind every ISAR classification system.

What you're seeing: a multi-tone RF drive turning one laser beam into an addressable array of optical tweezers for neutral atoms. Each RF tone launches an acoustic grating; Bragg diffraction steers the beam by θ = λ·f_RF / v, so tone frequency maps linearly to trap position at the focal plane, Δx = F·λ·Δf / v. Diffraction efficiency follows sin²(π/2·√(P/P_sat)) — overdrive it and efficiency rolls back over while tone–tone third-order intermodulation (growing 3 dB per dB of drive) spawns ghost traps between your atoms. The readouts flag the crossover: here, RF chain design is the quantum hardware.

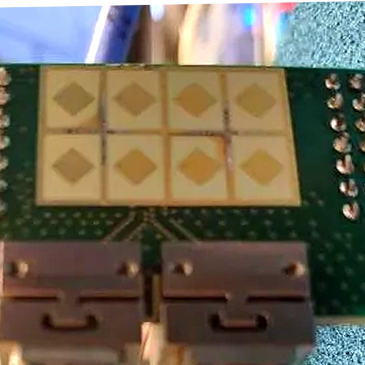

What you're seeing: the array factor of a linear or planar lattice, steered electronically by a progressive phase β = −kd·sinθ₀ per axis. In 1D mode, a polar cut shows the classic trades: more elements narrows the beam, the taper slider sinks sidelobes at the cost of main-lobe width, and spacing past d/λ = 1/(1+|sinθ₀|) lets a grating lobe into visible space. In 2D mode, the planar array factor AF(u,v) = F_x(u)·F_y(v) is rendered as a full 3D beam surface over the hemisphere — drag the plot to orbit it. Steer in azimuth and elevation together and watch grating lobes erupt from one lattice axis independently of the other; the pencil beam's two principal-plane widths and the aperture-area directivity (D ≈ 4πA/λ²) update live. The amber lattice at the base is the physical aperture itself.

What you're seeing: textbook insertion-loss filter synthesis, computed exactly. Prototype g-coefficients (maximally-flat or equal-ripple Chebyshev) are transformed into a real LC ladder — series/shunt single elements for low- and high-pass, resonator pairs for band-pass and band-reject — and the full network is swept by ABCD cascade over your chosen frequency range, so the plotted curves are the true circuit response, not a template. Watch the classic trades: Chebyshev buys a steeper skirt at the price of passband ripple (visible in both |S₂₁| and the return-loss lobes — count them, there are N), and each added order steepens the roll-off. The Smith inset traces the input reflection S₁₁(f) from sweep start (cyan) to stop (amber): a well-matched passband hugs the chart center while stopbands slide out to the reflective rim.

What you're seeing: how a classical RF pulse becomes a quantum logic gate. The chain at the top — AWG generating I/Q envelopes, single-sideband IQ modulator against a ~5 GHz LO, then heavy attenuation down the dilution refrigerator — delivers a microwave tone to a transmon. In the rotating frame the qubit's Bloch vector precesses about an axis set entirely by RF parameters: amplitude × duration sets the rotation angle (a resonant Ω·t = ½ flop is a π pulse — the X gate), the RF carrier phase φ sets the rotation axis (an X gate and a Y gate differ only by 90° of RF phase), and detuning Δ tilts the axis toward the pole so the flop never completes — the generalized Rabi formula P₁ = (Ω²/Ω_R²)·sin²(πΩ_R t), drawn live in the chevron plot. The coherence slider shrinks the Bloch vector as e^{−t/T₂}: every dB of phase noise and amplitude ripple in the RF chain lands directly in gate fidelity, which is why qubit control is an RF engineering problem. Drag the sphere to orbit it.

What you're seeing: the two operating modes of a reconfigurable intelligent surface, computed exactly from transmission-line theory. In absorber mode, a varactor-loaded capacitive sheet sits over a grounded dielectric slab; turning the bias knob changes the diode capacitance through its real C–V law, which re-tunes the sheet impedance and walks the absorption notch across the band — an electronically steerable Salisbury-class screen. Thickness and εr are your geometry knobs; sheet resistance sets how close the notch gets to a perfect 377 Ω match, and oblique TE/TM incidence splits the behavior exactly as measured hardware does. The Rozanov readout is the honesty meter: a metal-backed passive absorber's bandwidth-depth product is bounded by its thickness (∫ln|Γ|dλ ≤ 2π²·d) — tunability is how real systems cheat the bound, trading instantaneous for tunable bandwidth. In coding-reflector mode, a 16×16 aperture is programmed with 0/π (1-bit) or four-level (2-bit) reflection phases, with independent code periods along x and y: each gradient adds a direction-cosine shift λ/Λ per the grating equation, so the X code steers in the plane of incidence, the Y code steers out of it, and together they place the anomalous beam anywhere on the hemisphere — rendered as a full 3D scattered pattern you can drag to orbit. The specular return an adversary's radar would see collapses (watch its dB readout), with 1-bit coding splitting power into symmetric orders while 2-bit blazing throws it into a single beam. Same surface, two products: adaptive RCS control and 6G reconfigurable intelligent surfaces.

The application — label-free affinity screening. In early drug discovery you need to know whether a candidate compound actually binds its protein target, and how tightly (its dissociation constant K_D), without attaching fluorescent labels that can perturb the very binding you're measuring. Here a THz metasurface — a Fano-resonant split-ring array whose fields are crammed into µm-scale gaps far smaller than the 300 µm wavelength — is functionalized with immobilized target protein. When compound flows across it and binds, the captured mass changes the local dielectric loading in exactly those high-field gaps, shifting the sharp resonance. Live-spectrum view shows the Fano dip walking as you change concentration; dose–response view sweeps concentration to trace the binding curve, and the fitted midpoint reads out K_D directly. The physics is the same field-confined resonant perturbation as the smart-surface tab — Δf/f₀ ∝ (Δε · filling factor · occupancy) — but the tuning knob is now molecular binding rather than a varactor. It's why a subwavelength virus, protein monolayer, or bound small molecule produces a readable signal: the metasurface is a mechanical amplifier for dielectric perturbation. Caveats a real assay faces: non-specific binding and buffer drift add background shift (needs a reference resonator), and drying artifacts plague THz bio-samples — microfluidic in-liquid operation is the honest path.

What you're seeing: a lab-on-chip dielectric sensor — the workhorse of microwave microfluidics. A complementary split-ring resonator etched in the ground plane of a through-line creates a sharp transmission notch; a PDMS microchannel routes sample fluid across the resonator's high-field gap, so the fluid becomes part of the resonator. Its real permittivity sets where the notch sits (f₀ ∝ 1/√ε_eff) and its loss tangent sets how deep and sharp the notch is (Q ∝ 1/tanδ). Because glucose displaces water and water dominates the permittivity, rising glucose raises f₀ by a few tens of MHz — small, but a high-Q resonator resolves it. The calibration view sweeps analyte concentration to build the f₀-vs-concentration line a real device is factory-calibrated against, with a resolution estimate from the frequency-noise floor. The slider that matters most is channel fill factor: crank it up and the resonance shifts far more per unit concentration (higher sensitivity) — but watch Q collapse as more lossy water loads the cavity. That sensitivity-versus-Q tension is the central design problem of every microwave microfluidic sensor, and it's why biological buffers, which are extremely lossy, push these designs toward CSRRs and evanescent coupling. Same resonant-perturbation physics as the smart-surface and THz-biosensor tabs, now in your microwave band with a flowing dielectric as the variable.

What you're seeing: dielectrophoresis — moving matter with non-uniform fields, no contact and no labels. An interdigitated electrode array creates a strongly non-uniform AC field; each polarizable particle feels a net force F_DEP ∝ Re[K(ω)]·∇|E|² whose sign is set by the Clausius–Mossotti factor K(ω) = (ε*_p − ε*_m)/(ε*_p + 2ε*_m). When Re[K] > 0 the particle is more polarizable than the medium and climbs the gradient toward field maxima at the electrode edges (positive DEP); when Re[K] < 0 it is pushed into the low-field regions between them (negative DEP). The frequency where Re[K] crosses zero — the crossover — depends on particle size and on medium conductivity, which is the key tuning knob (raise σ_m and the crossover marches upward). Park the drive frequency in a window where the particles you want feel pDEP and get trapped at the electrodes while everything else stays suspended in nDEP: that is label-free sorting. Move the frequency slider and watch the particles swim toward or away from the electrodes in real time; switch the electrode geometry to reshape the field landscape. This is the manipulation twin of the sensing tabs — same complex-permittivity physics, now doing mechanical work on matter. Honest limits: Joule heating and buffer conductivity cap the usable voltage, competing AC-electroosmotic and electrothermal flows dominate at low frequency, and throughput is the perennial constraint.

What you're seeing: a frequency-reconfigurable antenna with no diodes, no MEMS, and no semiconductors — just liquid metal pumped through a channel. A monopole's resonance is set by its physical length (f₀ = v·c/4L for a quarter-wave element), so if the conductor is a column of galinstan in a microcapillary, a syringe pump or electrochemical actuation sets the radiating length continuously. Pump the column from 8 to 80 mm and watch the resonance sweep across nearly a decade — a tuning range no varactor can touch, and with far lower loss at the resonant length. The capillary's dielectric wall slows the wave (velocity factor v), shifting resonance down and giving a second, independent tuning knob. In the S11 view the match notch walks with column length; align it to your target band and read the return loss. In the pattern view the elevation cut morphs as the element passes through quarter-wave (peak at the horizon, ideal for coverage), five-eighths-wave (maximum horizon gain), and beyond a wavelength (the main lobe lifts skyward and the horizon null appears) — so the same pump that retunes frequency also reshapes the beam. This is the analog, mechanically-actuated cousin of the varactor/PIN reconfiguration in the metasurface tab: slower to switch, but continuously tunable, low-loss, and immune to the nonlinearity of semiconductor tuners.

What you're seeing: the sensing modality most EV makers are racing to build into the battery-management system — electrochemical impedance spectroscopy on a live cell. A conventional BMS sees only terminal voltage and current, blind to what's happening inside; EIS excites the cell across frequency and reads its complex impedance, which encodes state of charge, internal temperature, and — critically — the early precursors of thermal runaway. The Nyquist plot is the diagnostic fingerprint: the high-frequency intercept is ohmic resistance R_ohm (electrolyte + contacts), the mid-frequency semicircle diameter is charge-transfer resistance R_ct, and the low-frequency 45° tail is Warburg diffusion. Each slider moves the fingerprint the way real physics does: cold temperature and aging swell the semicircle (Arrhenius-activated R_ct), state of charge shifts the low-frequency branch, and the Li-plating/fault knob grows the tell-tale second arc and depresses the intercept — the signature a safety algorithm watches for, because lithium plating and separator degradation precede internal shorts. Because R_ct depends on temperature through an Arrhenius law, the same measurement estimates internal cell temperature with no internal thermocouple — a sensorless-thermometry trick worth real money at pack scale. This is the same complex-impedance physics as the Smith-chart and microfluidic tabs, now reading a battery. Honest limits: the precursor signal is weak against huge electrical/thermal noise, per-cell EIS hardware must cost near-zero at automotive volume and survive 15 years, and no single feature is decisive — the real product is the data-fusion algorithm that turns impedance, temperature, and gas cues into one early-warning score.

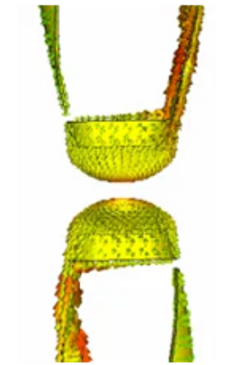

What you're seeing: the exact workflow behind our AI-accelerated EM offering, running live. The "expensive solver" is a physics-derived absorber landscape: reflection at the target frequency has two resonant minima — the λ_g/4 and 3λ_g/4 thicknesses of a grounded slab — of unequal depth. Loss dissipation deepens and broadens the electrically-thin resonance while starving the high-Q thick one, so which well is globally optimal flips as tanδ changes — a genuinely counter-intuitive landscape where greedy search picks the wrong basin half the time. A Gaussian-process surrogate is fitted to the handful of solver calls made so far: the cyan line is its prediction, the band its honest ±2σ uncertainty. The expected-improvement acquisition (lower panel) weighs "promising" against "unexplored" and picks the next sample; watch it converge on the global optimum in ~10–12 calls where a dense sweep burns 200. Switch to You choose and click the plot to race the algorithm — most humans either over-exploit the first dip they find or waste calls exploring flat regions. The faint dashed curve is the hidden truth, shown only so you can judge the surrogate's honesty; in a real engagement, every point on it costs hours of full-wave compute — which is precisely the point.

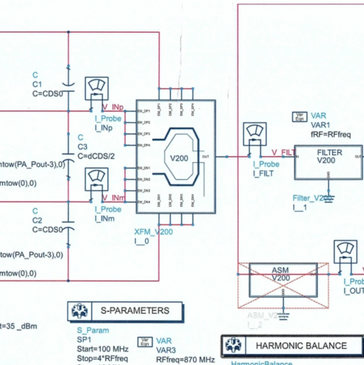

What you're seeing: the machine-learning fix for the nonlinearity problem posed in the 5G PA tab, training in front of you. A power amplifier driven near saturation compresses the signal (AM/AM) and rotates its phase with amplitude (AM/PM), splattering energy into the neighboring channels — the spectral regrowth shoulders in the lower plot, quantified by ACPR, the number every 5G emission mask regulates. Digital predistortion learns the PA's inverse and applies it first, so the cascade comes out linear. Press Train: a complex polynomial model fits the post-inverse by LMS gradient descent (the industry-standard indirect learning architecture), and you watch three things converge at once — the loss curve falling, the AM/AM characteristic straightening onto the ideal line, and the spectral shoulders collapsing ~10 dB, with the green ACPR readout improving epoch by epoch. Push the drive level higher and DPD's limit appears honestly: once signal peaks clip past saturation there is no inverse — you can't predistort your way out of a hard ceiling, which is exactly why DPD and back-off are co-designed. More polynomial terms fit sharper inverses at the cost of noisier training; learning rate trades convergence speed against stability. This is a real, revenue-line technique in every 5G base station — demonstrated end-to-end in your browser.

What you're seeing: a serial link fighting copper, computed from first principles on every slider move. The channel is a stripline with the two loss mechanisms every SI engineer battles — skin effect (∝√f) and dielectric loss (∝f·Df) — so attenuation compounds with both length and data rate; the magnitude response is rendered minimum-phase by cepstral reconstruction, so the pulse response is causal and asymmetric exactly as real copper is. Add a via stub and a quarter-wave resonance notches the channel — harmless at 12.5 GHz Nyquist, lethal at 25. The eye diagram folds 128 random symbols through the resulting single-bit response. Then try the escapes and read their price tags: CTLE flattens the channel by cutting lows, not boosting highs, so the eye opens while the swing shrinks (and in real receivers the peaking amplifies noise we don't model); TX FFE is zero-forcing on the pulse cursors under a peak-power constraint — de-emphasis spends transmit amplitude to cancel ISI; and PAM4 halves the Nyquist frequency for the same bit rate at a fixed ~9.5 dB eye-height tax — flip between 100G NRZ and 100G PAM4 on any real trace and you'll watch the industry's decision make itself: at these loss slopes the modulation tax is cheaper than the copper. And note the FFE's finite reach: at moderate ISI three taps quadruple the eye, but push the channel past ~30 dB and the same equalizer hurts — the uncancelled tail plus the peak-power tax outrun the cancellation, which is why 224 Gb/s links carry 20-tap DSP and decision feedback, not three taps. Honest limits: LTI channel only — no reflections beyond the first-order stub, no crosstalk, no random or deterministic jitter, no receiver noise (so CTLE looks kinder than it is), ideal sampling, 3-tap FFE only, textbook loss coefficients for a 5-mil stripline in ε_r≈3.8.

What you're seeing: a digital board's radiated-emissions fate, computed from the two mechanisms that decide every chamber visit. The clock's odd harmonics carry a trapezoid envelope whose high-frequency corner is set by edge rise time — slow the edges and watch the upper spectrum fall for free. Each harmonic radiates two ways. Differential mode (cyan) is the signal loop itself: Ott's far-field result E ∝ f²·A·I — it needs f² and real loop area to matter, which is why tight routing usually keeps it under the line. Common mode (coral) is the killer: route the trace across a ground-plane slot and the return current detours, the slot inductance (~1 nH/mm) develops a voltage V = ωLI, and that voltage drives your attached cable as a dipole. Watch the readout: single-digit microamps of common-mode current at 100 MHz are enough to fail Class B — the most counterintuitive number in EMC. Then apply the classic fixes and see which ones actually work: shrink the loop (helps DM only), slow the edges (helps everything above the envelope corner), stitch the slot (collapses CM conversion >20 dB), or remove the cable (removes the antenna). Honest limits: Ott far-field formulas at the 3 m CISPR/FCC distance with ground-plane reflection included in the DM coefficient; peak harmonic amplitudes compared against quasi-peak limits (conservative); flat 200 Ω common-mode impedance and 1 nH/mm slot heuristic; cable response resonance-capped at λ/4 effective length; ideal 50% duty (odd harmonics only); 10 mA driver amplitude; no enclosure, no shielding, no cable resonance detail.

What you're seeing: a ¹H NMR spectrometer measuring ethanol, synthesized from spin physics on every control move: each line is a decaying complex exponential in the rotating frame (Bloch evolution after the pulse), the FID is Fourier-transformed, and the spectrum is displayed as a properly phased absorption lineshape on the conventional reversed ppm axis. The three lessons that shape a billion-dollar instrument market: (1) SNR scales as B₀^3/2 — flip between 60 and 900 MHz and watch the noise floor collapse; averaging buys the rest at √N cost in time (the experiment-time readout keeps you honest). (2) Chemical-shift dispersion scales with B₀ but J-coupling does not: the CH₂ quartet's 7.0 Hz splitting is identical at every field — watch the multiplets tighten in ppm as the field climbs while the readout holds at 7.0 Hz. That's why crowded pharmaceutical spectra need high field: shifts spread apart while multiplets stay the same width. (3) Resolution is only half magnet — the other half is shimming: the linewidth is 1/(πT₂*), so degrade the shim and watch the multiplets smear into each other at any field. And try a 180° pulse: the signal nulls, because you inverted the magnetization instead of tipping it into the detection plane — signal ∝ sinα. Honest limits: first-order multiplet analysis (strong-coupling second-order roofing at low field is not modeled), one-dimensional single-pulse FT acquisition with ideal quadrature detection and perfect zero-order phasing; processing is zero-fill ×2 with no apodization, exchange-narrowed OH singlet, noise modeled white with the textbook B₀^3/2 coil-dominated law (real systems range B₀^3/2–B₀^7/4), T₂* treated as field-independent — real magnet inhomogeneity is specified in ppm, so absolute linewidth tends to grow with B₀, partially offsetting the resolution gain shown here; no radiation damping, no relaxation weighting between scans (full recovery assumed at a 3 s recycle).
